QES16P/ QES20P
Ovaj teški električni stoker projektovan je za visoko efikasne radne operacije, pružajući stabilne i pouzdane performanse čak i u višezadatnim radnim uslovima.
Zahvaljujući povećanoj brzini kretanja i podizanja, kao i raznovrsnim opcijama baterija, uključujući litijumske baterije, oprema se može konfigurisati za stvaranje radne jedinice visokih performansi i produktivnosti.

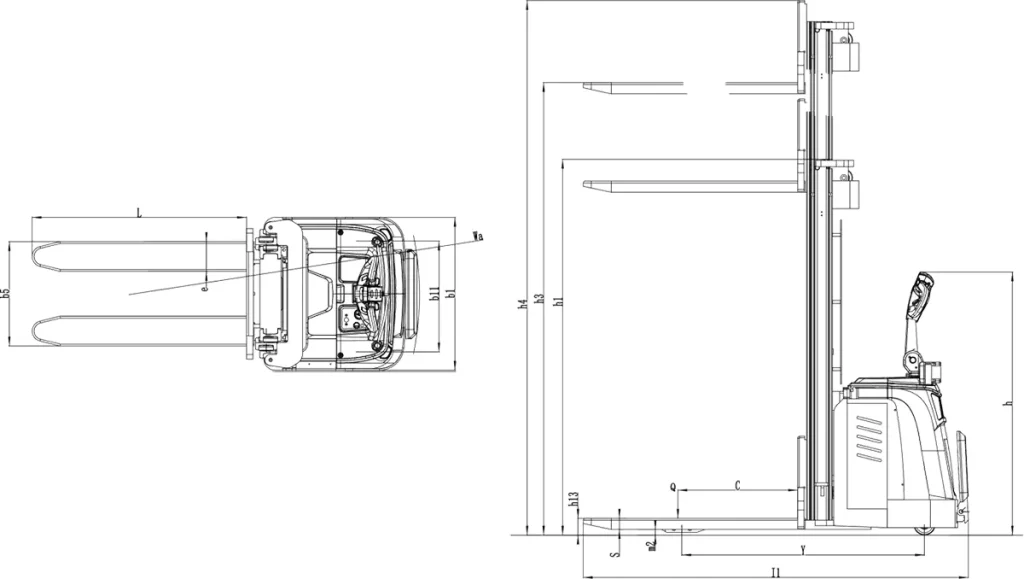

| Manufacturer’s type designation | QES-P | |||||
|---|---|---|---|---|---|---|
| Distinguishing mark | 1.3 | Power (battery,diesel,petrol,gas,manual) | Battery | |||
| 1.4 | Operator type | Rider-control | ||||
| 1.5 | Load capacity / Rated load | Q(t) | 1.6 | 2.0 | ||
| 1.6 | Load centre distance | C (mm) | 600 | |||
| 1.8 | Load distance, centre of drive axle to fork | X (mm) | 620 | |||
| Weight | 1.9 | Wheelbase | Y (mm) | 1350 | ||
| 2.1 | Service weight | kg | 1250 | |||
| 2.2 | Axle loading, laden front/rear | kg | \ | |||
| Tires, chassis | 2.3 | Axle loading, unladen front/rear | kg | \ | ||
| 3.1 | Tires | PU | ||||
| 3.2 | Tire size, front | ∅×w (mm) | Φ250×70 | |||
| 3.3 | Tire size, rear | ∅×w (mm) | Φ80×70 | |||
| 3.4 | Additional wheels(dimensions) | ∅×w (mm) | Φ110×55 | |||
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1×2/4 | ||||
| 3.6 | Track, front | bw (mm) | 625 | |||
| 3.7 | Track, rear | bw (mm) | 410/525 | |||
| Dimensions | 4.2 | Lowered mast height | hh (mm) | 1840 | ||
| 4.3 | Free Lift height | hh (mm) | 1330 | |||
| 4.4 | Lift height | hh (mm) | 4000 | |||
| 4.5 | Extended mast height | hh (mm) | 4480 | |||
| 4.9 | Height of tiller in drive position min. / max. | hh (mm) | \ | |||
| 4.15 | Height, lowered | hu (mm) | 90 | |||
| 4.19 | Overall length | l1 (mm) | 2080 | |||
| 4.20 | Length to face of forks | l2 (mm) | 930 | |||
| 4.21 | Overall width | b1 (mm) | 820 | |||
| Performance | 4.22 | Fork dimensions | s/e/l (mm) | 60/160/1150 | ||
| 4.25 | Distance between fork-arms | bs (mm) | 570/685 | |||
| 4.32 | Ground clearance, centre of wheelbase | m (mm) | 30 | |||
| 4.33 | Aisle width for pallets 1000×1200 crossways | Ast (mm) | 2470 | |||
| 4.34 | Aisle width for pallets 800×1200 lengthways | Ast (mm) | 2465 | |||
| 4.35 | Turning radius | Wa (mm) | 1560 | |||
| Performance | 5.1 | Travel speed, laden/ unladen | Km/h | 5.5/5.8 | ||
| 5.2 | Lift speed, laden/ unladen | m/s | 0.10/0.12 | |||
| 5.3 | Lowering speed, laden/ unladen | m/s | 0.12/0.1 | |||
| 5.8 | Max. gradeability, laden/ unladen | % | 5/8 | |||
| Electric engine Additional data | 5.10 | Service brake | Electromagnetic | |||
| 6.1 | Drive motor rating S2 60min | kw | 1.5/2(AC) | |||
| 6.2 | Lift motor rating at S3 4.5% | kw | 2/3 | |||
| 6.3 | Battery acc. to DIN 43531/35 /36 A,B,C, no | \ | ||||
| 6.4 | Battery voltage, nominal capacity K5 | V/Ah | 24/210(270) / 24/115,175,200,230) | |||
| 6.5 | B Battery weight +/-5% | kg | 200/250 | |||
| 6.6 | Energy consumption acc. to VDI cycle | KWh/h | \ | |||
| 8.1 | Type of drive control | AC speed control | ||||
| 8.4 | Sound level at driver’s ear acc. to EN 12053 | dB(A) | 69 | |||
