EPT15
Paletni transportni vozac EPT15 savršen je za lakih radnih aplikacija. Kompaktan i skeletni dizajn, baterija litijum sa brzim punjenjem, idealan za povremene operacije. Laka zamjena baterije, visoka upravljivost.
| < | Manufacturer's type designation < | EPT-V | |||
|---|---|---|---|---|---|
| Distinguishing mark | 1.3 | Power (battery,diesel,petrol,gas,manual) | Battery | ||
| 1.4 | Operator type | Pedestrian | |||
| 1.5 | Load capacity / Rated load | Q(t) | 1.5 | 2.0 | |
| 1.6 | Load centre distance | C (mm) | 600 | ||
| 1.8 | Load distance, centre of drive axle to fork | X (mm) | 950 | ||
| Weight | 1.9 | Wheelbase | y (mm) | 1270 | |
| 2.1 | Service weight | kg | 142 | 145 | |
| 2.2 | Axle loading, laden front/rear | kg | \ | ||
| Tires, chassis | 2.3 | Axle loading, unladen front/rear | kg | 100/34.5 | |
| 3.1 | Tires | PU | |||
| 3.2 | Tire size, front | ∅×w (mm) | Φ210×70 | ||
| 3.3 | Tire size, rear | ∅×w (mm) | Φ80×70 | ||
| 3.4 | Additional wheels(dimensions) | ∅×w (mm) | \ | ||
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x/4 | |||
| 3.6 | Track, front | bw (mm) | \ | ||
| 3.7 | Track, rear | bw (mm) | 390/525 | ||
| Dimensions | 4.4 | Lift height | hh (mm) | 110 | |
| 4.9 | Height of tiller in drive position min. / max. | hh (mm) | 585/1250 | ||
| 4.15 | Height, lowered | hu (mm) | 85 | ||
| 4.19 | Overall length | l1 (mm) | 1620 | ||
| 4.20 | Length to face of forks | l2 (mm) | 470 | ||
| 4.21 | Overall width | b1 (mm) | 550 | ||
| 4.22 | Fork dimensions | s/e/l (mm) | 50/160/1150 | ||
| 4.25 | Distance between fork-arms | bs (mm) | 550/685 | ||
| 4.32 | Ground clearance, centre of wheelbase | m (mm) | 35 | ||
| Performance | 4.33 | Aisle width for pallets 1000×1200 crossways | Ast (mm) | 2182 | |
| 4.34 | Aisle width for pallets 800×1200 lengthways | Ast (mm) | 2052 | ||
| 4.35 | Turning radius | Wa (mm) | 1380 | ||
| 5.1 | Travel speed, laden/unladen | Km/h | 4.2/4.5 | ||
| Motors | 5.2 | Lift speed, laden/unladen | m/s | 0.017/0.02 | |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.04/0.04 | ||
| 5.8 | Gradeability, laden/unladen | % | 6/10 | ||
| 5.10 | Service brake | Electromagnetic | |||
| Additional data | 6.1 | Drive motor rating S2 60min | kw | 0.9 | |
| 6.2 | Lowering speed, laden/unladen | kw | 0.5 | ||
| 6.3 | Max. gradeability, laden/unladen | \ | |||
| 6.4 | Service brake | V/Ah | 24/20 | 48/15 | |
| 6.5 | Drive motor rating S2 60min | kg | 5.5 | ||
| 6.6 | Energy consumption acc: to VDI cycle | KWh/h | \ | ||
| 8.1 | Type of drive control | DC speed control | |||
| 8.4 | Sound level at driver’s ear acc. to EN 12053 | dB(A) | ≤70 | ||

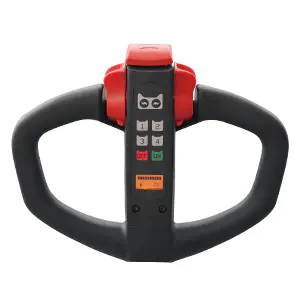

Operativni sistem：
Sustav pogona：
Hitni prekidač：
Komponente kontrole：
Litijum-fosfatna baterija：
